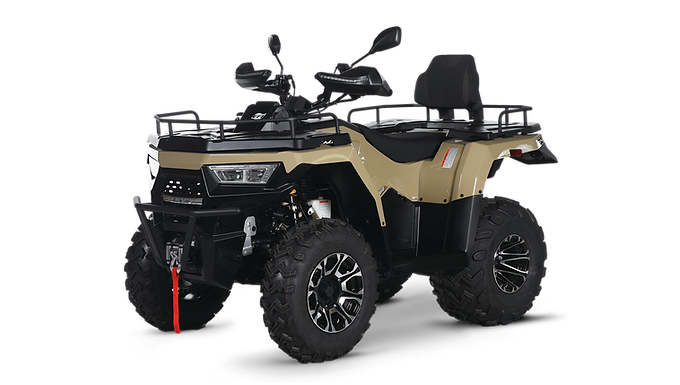

Monster F320

Model

F320

Size: L×W×H

2120×1140×1270mm

Wheelbase

1215 mm

Ground clearance

183 mm

Dry weight

295kg

Fuel Tank Capacity

14 L

Max speed

>60 km/h

Drive System Type

2WD/4WD

Specification of tire

Front: AT24×8-12

Rear: AT24×11-10

Brake system model

Front: Hydraulic Disc

Rear: Hydraulic Disc

Suspension type

Front:McPherson independent suspension

Rear:Swing arm

Engine model

LH173MN

Engine type

Single cylinder,4 stroke, water cooled

Engine displacement

275 cc

Bore and Stroke

72.5×66.8 mm

Max power

16/6500~7000 (kw/r/min)

Horse power

21.4 hp

Max torque

23/5500  (Nm/r/min)

Compression Ratio

9.5:1

Fuel system

EFI

Start type

Electric starting

Transmission

H-L-N-R

40'HQ QTY

30 Units
